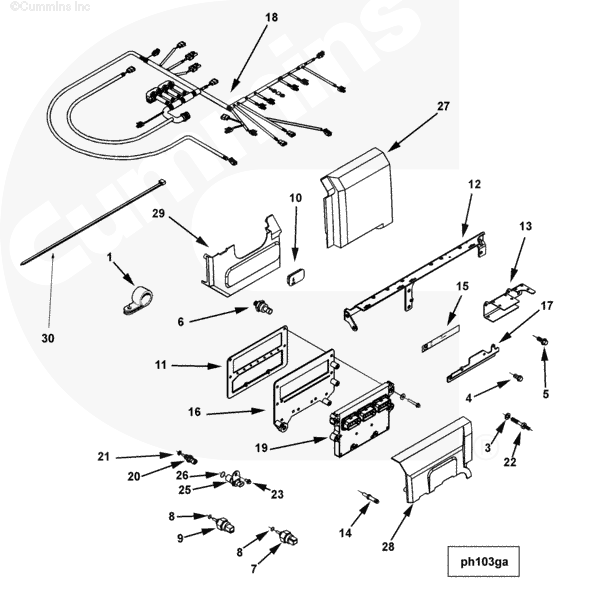

| | PH1768-07 | Electronic Control Module | | |
| | | | | Electronic Control Module |
| | | | | Engine Control System: APX |
| | | | | ISX Rating: 400/450/565/600 |
| | | | | ECM Version: CM570 Motorola |
| | | | | Module Location: Upper Left |
| | | | | Side Front |
| | | | | Etr, Control Module Cover: |
| | | | | Black |
| | | | | Ambient Air Pressure Sensor |
| | | | | Included: Yes |
| | | | | Intake Manifold Temp Sensor |
| | | | | Manufacture: Kavlico |
| | | | | Fuel System: LCFS |
| | | | | |
| 1 | 69465 | Clip | 2 | |
| 2 | 146161 | Washer, Plain | 4 | 3/8 inch |
| 3 | 3009330 | Washer, Plain | 1 | M10 |
| 4 | 3093931 | Screw, Hex Flange Head Cap | 2 | M10 x 1.50 x 20 |
| 5 | 3093932 | Screw, Hex Flange Head Cap | 2 | M10 x 1.50 x 25 |
| 6 | 3331044 | Sensor, Pressure | 1 | Ambient air. |
| 7 | 3417183 | Sensor, Prs Temperature | 1 | Intake manifold. |
| 8 | 3330202 | Seal, O Ring | 1 | |
| 9 | 3417185 | Sensor, Prs Temperature | 1 | Oil. |
| 8 | 3330202 | Seal, O Ring | 1 | |
| 10 | 3618863 | Cover, Protective | 1 | |
| 11 | 3680284 | Gasket, Etr Control Module | 1 | |
| 12 | 3680878 | Bracket, Cus Accessory | 1 | |
| 13 | 4026680 | Brace, Wiring | 1 | |
| 14 | 3681498 | Stud, Clinch | 5 | |
| 16 | 3681059 | Plate, Cooler | 1 | |
| 17 | 4059191 | Bracket, Cus Accessory | 1 | |
| 18 | 4059348 | Harness, Etr Cnt Mdl Wrg | 1 | |
| 19 | 3681405 | Module, Electronic Control | 1 | Recon equivalent 3681405 RX |
| 20 | 3865346 | Sensor, Temperature | 1 | Coolant or oil or fuel |
| 21 | 3678912 | Seal, O Ring | 1 | |
| 22 | 3883397 | Screw, Hexagon Head Cap | 1 | |
| 23 | 3900629 | Screw, Hex Flange Head Cap | 4 | M8 x 1.25 x 16 |
| 24 | 3925402 | Screw, Hex Flange Head Cap | 6 | M8 x 1.25 x 50. |
| 25 | 4001902 | Sensor, Position | 2 | Cam or crank. |
| 26 | 4010600 | Seal, O Ring | 1 | |
| 27 | 4026784 | Cover, Decorative | | |
| 28 | 4059245 | Cover, Fuel Control | 1 | |
| 29 | 4026431 | Cover, Decorative | | |
| 30 | 3076301 | Clamp, Wire Tie | 1 | |
| | | | | |
| | | | | NOTE; The information below |
| | | | | should provide assistance in |
| | | | | type/function of sensors. |
| | | | | |
| | | | | |
| | 3417183 | Sensor, Prs Temperature | | Intake manifold. |
| | | | | Pressure/Temperature. |
| | 3417185 | Sensor, Prs Temperature | | Oil. |
| | | | | Pressure/Temperature. |
| | 3865346 | Sensor, Temperature | | Coolant or oil or fuel |
| | | | | Temperature. |
| | 3331044 | Sensor, Pressure | | Ambient air. |
| | | | | Pressure. |
| | 4001902 | Sensor, Position | | Cam or crank. |
| | | | | Function: Cam/crank position. |
| | 3330998 | Sensor, Pressure | | Fuel. |
| | | | | Pressure. |
| | 3330527 | Sensor, Pressure | | Fuel. |
