Каталог деталей - Дополнительная информация

Содержание для серийного номера двигателя (ESN): 14018115

Электронный каталог деталей - дополнительная информация
Вариант исполненияГруппаГрафическая информацияМикрофишаДата
OP1175-0207.01op106gpSS07-SEP-00
ДвигателиQSX15 CM570, ISX15 CM2250, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, ISX15 CM2250 SN, ISX CM871, ISX CM570, ISX CM870, ISX CM871 E, QSX15 CM2250 ECF, ISX15 CM2350 X101
МАЛЫЙ | СРЕДНЯЯ | БОЛЬШОЙ

Add Part to CartRef NoPart NumberPart NameRequiredRemarks

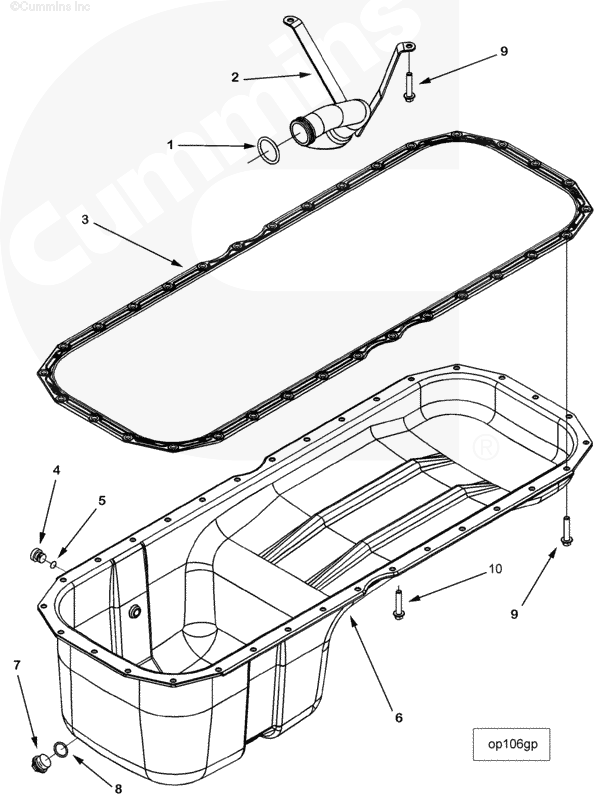

  OP1175-02Oil Pan
     Oil Pan
     Sump Location: Front
     Material: Steel
     Construction: Stamped
     Sump Capacity:
     12 Gallons High
     10 Gallons Low
     Angularity Limits: N/A
     Unique Characteristics:
     Studs on oil pan flange
     located at #3, #5 and #28
     mounting holes on exhaust
     side and at #11, #13, #15,
     #18 and #22 mounting holes on
     fuel pump side of engine.
     Refer to the new engine build
     standard for d10. AEB 46.04
     may also be consulted.
     Maximum weight limit on any
     single stud is seven (7)
     pounds.

13678756Seal, O Ring1
23679714Connection, Oil Suction1
34026684Gasket, Oil Pan1
 3680530Pan, Oil TLA
       3680420Plug, Threaded1
 4          3680419Plug, Threaded1
5          3678912Seal, O Ring1
6      3680531Pan, Oil1
       3680534Plug, Threaded2
7          3680533Plug, Threaded1
8          3678606Seal, O Ring1M27 x 2.00
93903112Screw, Hex Flange Head Cap26M10 x 1.50 x 30
104026812Screw, Hex Flange Head Cap8
