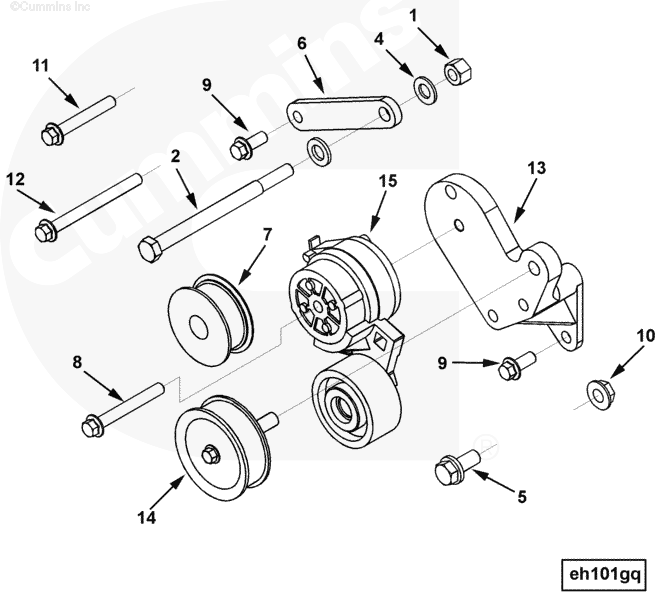

| | | EH1094 | Alternator Mounting | | |
| | | | | | Alternator Mounting |
| | | | | | Drive Ratio: 3.56:1 |
| | | | | | Location: Right Side |
| | | | | | Front Face of Block: 138.75 |
| | | | | | to First Groove |
| | | | | | Mounting Type: |
| | | | | | 4 Inch Spool on Bracket |
| | | | | | Alternator Attachment Point: |
| | | | | | Water Pump Housing |
| | | | | | Belt Description: 6 Groove |
| | | | | | Poly Vee |
| | | | | | Adjusting Link Included: |
| | | | | | Yes |
| | | | | | Drive: Water Pump Pulley |
| | | | | | For Use With: 8.50 Through |
| | | | | | 20.25 Inch Fan Center |
| | | | | | Contains Special Screw for |
| | | | | | Ease of Mounting |
| | | | | | For Use With Delco |
| | | | | | Alternators |
| | | | | | |
| 1 | 70897 | Nut, Lock | 1 | 1/2 - 20 UNF |
| 2 | 158829 | Screw, Hexagon Head Cap | 1 | 1/2 - 20 x 6 1/2 inch |
| 3 | 203310 | Washer, Plain | 1 | 9/16 inch |
| 4 | 3035806 | Washer, Plain | 1 | M12. |
| 5 | 3063567 | Screw, Captive Washer Cap | 1 | 1/2 - 13 X 1 1/4 Inch. |
| 6 | 3679912 | Link, Adjusting | 1 | |
| 7 | 3680082 | Pulley, Alternator | 1 | |
| 8 | 3900679 | Screw, Hex Flange Head Cap | 1 | M10 x 1.50 x 80 |
| 9 | 3902460 | Screw, Hex Flange Head Cap | 2 | M10 x 1.50 x 25 |
| 10 | 3903210 | Nut, Hexagon Flange | 1 | M12 X 1.75. |
| 11 | 3904446 | Screw, Hex Flange Head Cap | 1 | M10 x 1.50 x 70 |
| 12 | 3922863 | Screw, Hex Flange Head Cap | 1 | M10 x 1.50 x 110. |
| 13 | 4026796 | Support, Belt Tensioner | 1 | |
| | 14 | 4026886 | Pulley, Idler | 1 | Recon equivalent 4026886 NX |
| | | | | | through recon as either nx |
| | | | | | (new exchange) or rx ( |
| | | | | | remanufactured exchange). |
| 15 | 4059201 | Tensioner, Belt | 1 | |
