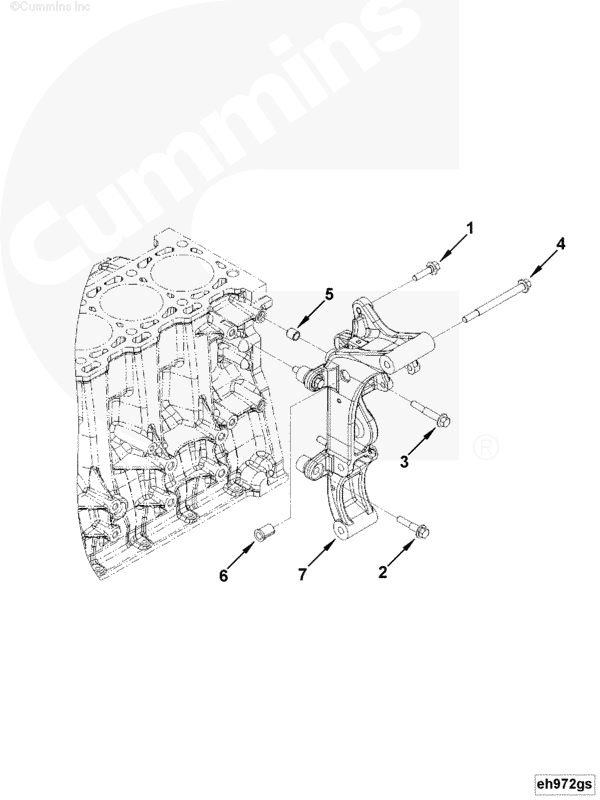

  EH97864Alternator Mounting Alternator Mounting
     Structure Code: Mr 03 EBM
     Engine Family: F Series
     Design Phase: Beta 2.0
     alternator mount location:
     Cylinder block tensioner
     pivot location: From CL of
     Engine (mm): -177.4
     From CL of Crank (mm): 124.9
     Tensioner Free Arm Angle:
     352.8 Deg.
     Belt Supplier: Cummins
     Belt Tensioner Supplier:
     Cummins alternator mount
     type: 2 x M10X 1.5 from
     front alternator mount:
     Integral pad for freon
     compressor provided: Yes
     alternator
     manufacturer/model: Dehong
     jfz1120-113-wx stud for
     wiring harness attachment:
     Yes alt tail support
     required: No
     Reference Compressor Mounting
     Hardware Included: No tall
     tensioner bracket: No idler
     pulley mounting position:
     From CL of engine (mm): -105
     From CL of Crank (mm): 212
     Alternator Center: Pulley
     Loc Horiz From Engine CL
     Pulley location horizontal
     (mm): -215
     Pulley location vertical from
     crank centerline (mm): 375
     Pulley Retainer Provided: No
     alternator pulley provided:
     No alternator pulley diameter
     over gage balls (mm): 60.81
     mounting for alternator type:
     Lug mounted
     Alternator Driven By Auxilary
     Belt: No torque value to
     tight mounting bolts (10.9
     grade): 65nm.
13089016Screw, Hex Flange Head Cap1
23093826Screw, Hex Flange Head Cap2
33102651Screw, Hex Flange Head Cap2
43902663Screw, Hex Flange Head Cap1M10 X 1.50 X 120
 5286733Bracket, Alternator1
5      3900720Dowel, Ring2
6      3974163Spacer, Mounting1
7      5286732Bracket, Alternator1
