Содержание для серийного номера двигателя (ESN): 87011755

Электронный каталог деталей - дополнительная информация
Вариант исполненияГруппаГрафическая информацияМикрофишаДата

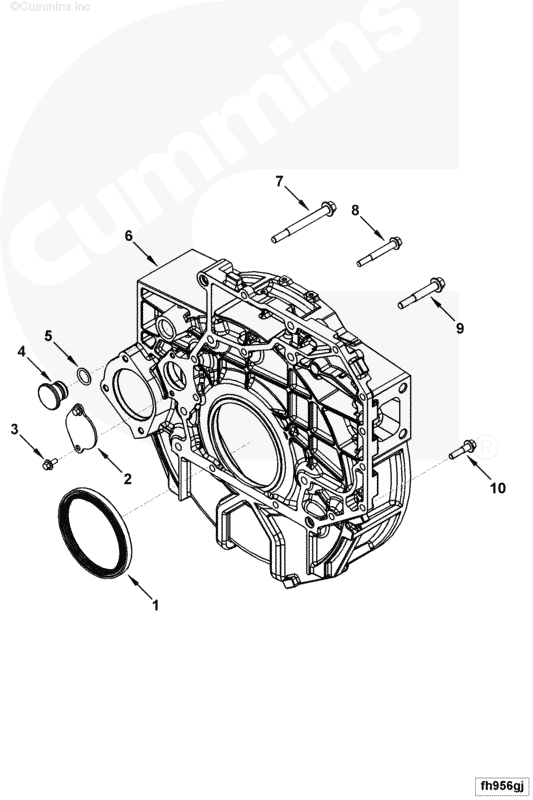

FH947616.01fh956gjT10-MAR-08
Двигатели4B3.9, ISBE CM2150, ISD4.5 CM2150, QSB6.7 M CM2250, ISF3.8 CM2220 F103, QSB6.7 CM2250 EC, ISB 5.9 G CM2180, ISBE CM800, ISF3.8 CM2220 AN, ISB6.7 CM2250, B4.5 RGT, ISF2.8 CM2220 F101, B5.9 G, QSB3.9 30 CM550, QSB5.9 30 CM550, G3.9, ISD6.7 CM2150 SN, QSB6.7 CM2250, ISF2.8 CM2220 EC, ISF3.8 CM2220 IAN, B6.7S, QSB7-DM CM850, ISB6.7 CM2350 B101, ISB CM850, ISBE4 CM850, ISF3.8 CM2220, B4.5, ISB CM2150, ISF2.8 CM2220 AN, ISB6.7 CM2150 SN, QSB6.7 CM850, B5.9 G CM558, B4.5S, ISB6.7 CM2150 SQ, 6B5.9, ISB4.5 CM2150, B5.9 GAS PLUS CM556, ISF2.8 CM2220 IAN, QSB4.5 30 CM550, ISB4.5 CM2150 SN, QSB5.9 CM850, ISB CM550, ISF2.8 CM2220, QSB4.5 CM850, QSB5.9 44 CM550, F3.8 F102, B GAS INTERNATIONAL CM556, B5.9 LPG PLUS CM556, QSB4.5 CM2250 EC
МАЛЫЙ | СРЕДНЯЯ | БОЛЬШОЙ

Add Part to CartRef NoPart NumberPart NameRequiredRemarks
  FH9476Flywheel Housing Flywheel Housing
     Structure Code: Mr 03 Opt
     Engine Family: B
     Clutch Type: Dry
     Starter Bore Position (deg):
     92 fly housing to block
     mounting pattern: 8 x m12
     x1.75 and 2 x M10X1.5 starter
     motor flange SAE type: #1 - 3
     bolt 90 degree fly. Housing
     SAE size: 2 starter pilot
     bore diameter (mm): 88.9
     Item Supplied:
     Flywheel Housing
     Starter Bore Location (mm):
     From engine centerline (mm):
     -236.9 from crankshaft
     centerline (mm): -8.0 angle
     to starter bore mounting hole
     pattern: 0 degrees
     Starter mounting hole thread
     size: M10X1.5
     Starter mounting face
     offset(mm): 19.8
     Starter Bore Center Distance
     (mm): 237.0
     Starter Bore Angle From
     Horiz. Centerline (deg): -2
     rear engine PTO included: No
     REPTO gear thickness (mm):
     N/A REPTO gear drive ratio:
     N/A
     Tachometer sensor mounting
     hole count: 1
     Material: Aluminium
     Engine Mount Type: Pad
     mounting pad hole
     description: 6 x m12 x1.75
     mounting pad top hole
     location (mm): 179.0
     mounting pad angle: 0
     degrees mounting arm hole
     size: N/A trunnion diameter
     (mm): N/A trunnion location:
     N/A trans mounting hole
     count/thread description: 12
     x
     Tachometer drive
     location/size: 150 degrees,
     3/4-16
     Additional Info/features:
     3/4-NPTF Drain Hole up to
     4011nm bending moment capable
     at transmission mounting
     flange dcec may use oil seal
     P/N 3968563 instead of of P/N
     3973745.
13968563Seal, Oil1
 3971928Housing, Flywheel1
2      3908095Plate, Cover1
3      3900629Screw, Hex Flange Head Cap2M8 X 1.25 X 16
4      3910248Plug, O Ring1
5      3910260Seal, O Ring1
6      4991574Housing, Flywheel1
73089188Screw, Hex Flange Head Cap2
83900679Screw, Hex Flange Head Cap2M10 X 1.50 X 80
93914177Screw, Hex Flange Head Cap6M12 X 1.75 X 80
103903464Screw, Hex Flange Head Cap9M10 X 1.50 X 40
